제품 상세 정보:
|
| 애플리케이션: | 10-50톤 크롤러 굴삭기 | 유형: | 암석 회전 그래플 |
|---|---|---|---|
| 재료: | Q345B/Q690D/NM400/Hardox450 | 색상: | 굴삭기 모델과 동일 |
| 상태: | 새로운 | 보증 서비스 후: | 예비 부품 |
| 강조하다: | excavator rotating rock grapple,rotating grapple for excavator,excavator rock grapple attachment |
||
Features:
1.Can be hydraulic type or mechanical type.
-Hydraulic type is driven by two vertical cylinder(one cylinder with one linkage design is also available for synchronizing).
-Mechanical type is driven by the bucket cylinder.
2.Cylinder's pistons are well protected by steel shroud preventing them from being demaged.

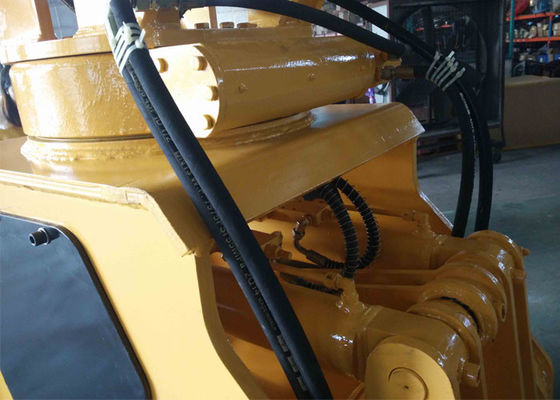

3.Oil hose are covered by plastic casing for protection.

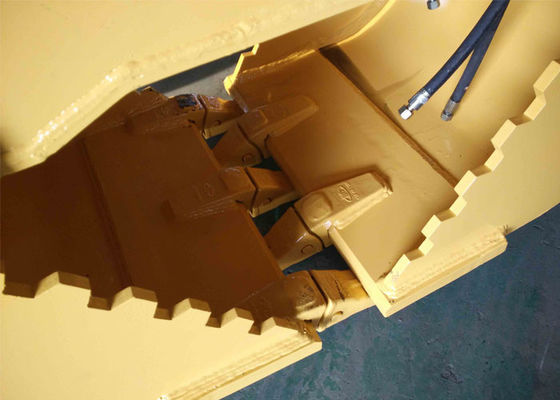

4.The cutting edge can be teeth made of cast steel or a welded patch made of wear-resistant steel.
5.Can be rotating type or non-rotating type.
-Rotating type is fitted with a integrated rotator which is capable of 360° rotating.
6.Two extra pair of oil pipe and valve has to be added to the excavator for rotating type rock grapple.
One extra pait of oil pipe and valve has to be added to the excavator for non-rotating hydraulic type rock grapple.
7.We can customized all kinds of sepecification to suit your demond,pls just advise your excavator model.
Product Parameters:
| Model | HK-RG100 | HK-RG200 | HK-RG300 | HK-RG400 | HK-RG450 |
|
Excavator tonnage(ton) |
10 | 20 | 30 | 40 | 45 |
| Self weight(kg) | 680 | 1100 | 1400 | 1950 | 2200 |
| Fuel flow(L/min) | 60-80 | 80-100 | 100-120 | 120-140 | 120-160 |
| Cylinder pressure(bar) | 320 | 320 | 320 | 320 | 320 |
| Rotation speed(L/min) | 25 | 25 | 25 | 25 | 25 |
| Rotation pressure(bar) | 160 | 160 | 160 | 160 | 160 |

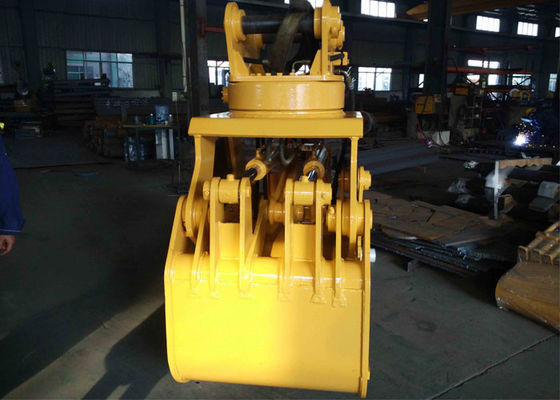

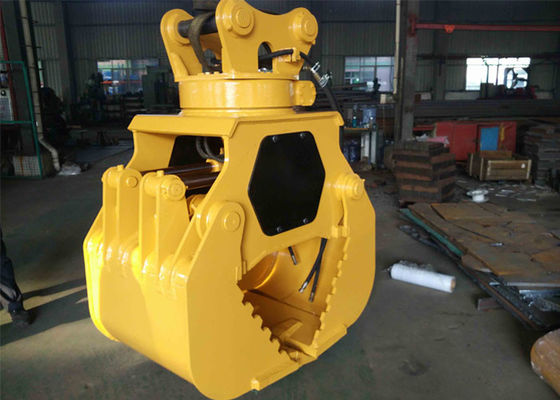

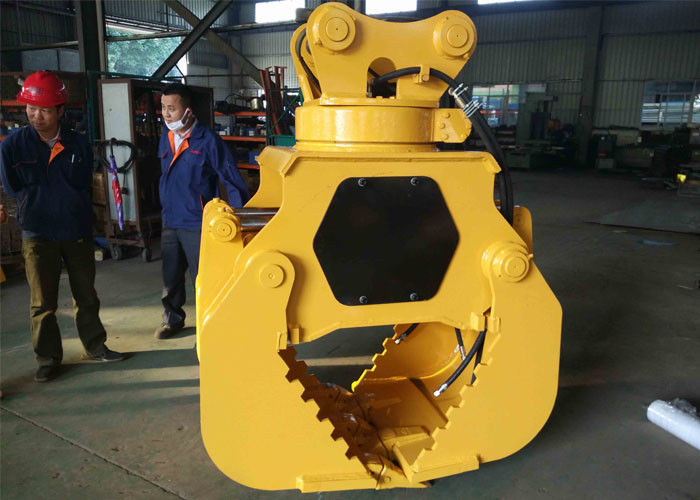

Product show:
FAQ:
Q:Are you trading company or manufacture?
A:We are factory.
Q:How long is your delivery time?
A:15 work days for 1~4pcs,30 work days for one container(10~20pcs).
Q:Do you provide parts for maintainance?
A:Yes,we will supply you explode parts list,if you need related parts,we can supply.
Q:What is your terms of payment?
A:Payment<=3000USD,100% in advance.Payment>=3000USD,30% T/T in advance,balance before shippment.
